GE DS200IIBDG1AGA IGBT Gate Driver Board 330mm x 200mm
| Lieu d'origine | NOUS |
|---|---|
| Nom de marque | GE |
| Numéro de modèle | Ds200iibdg1aga |
| Quantité de commande min | 1pc |
| Prix | $1500 |
| Détails d'emballage | Emballage de boîte individuelle nouvelle et originale |
| Délai de livraison | 5-7 jours |
| Conditions de paiement | T / t |
| Capacité d'approvisionnement | 999pcs |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Nom | GE DS200IIBDG1AGA PCB IGBT Gate Driver Board | ID de produit | Ds200iibdg1aga |
|---|---|---|---|
| Série | Mark V | Fonction | Pack de sortie discret |
| Profondeur / longueur nette du produit | 330 mm | Hauteur nette du produit | 200 mm |
| Largeur nette du produit | 100 mm | Poids net du produit | 2kg |
| Garantie | 1 an | ||
| Mettre en évidence | GE IGBT gate driver board 330mm,GE turbine control driver board,IGBT driver board with warranty |
||
Description de produit

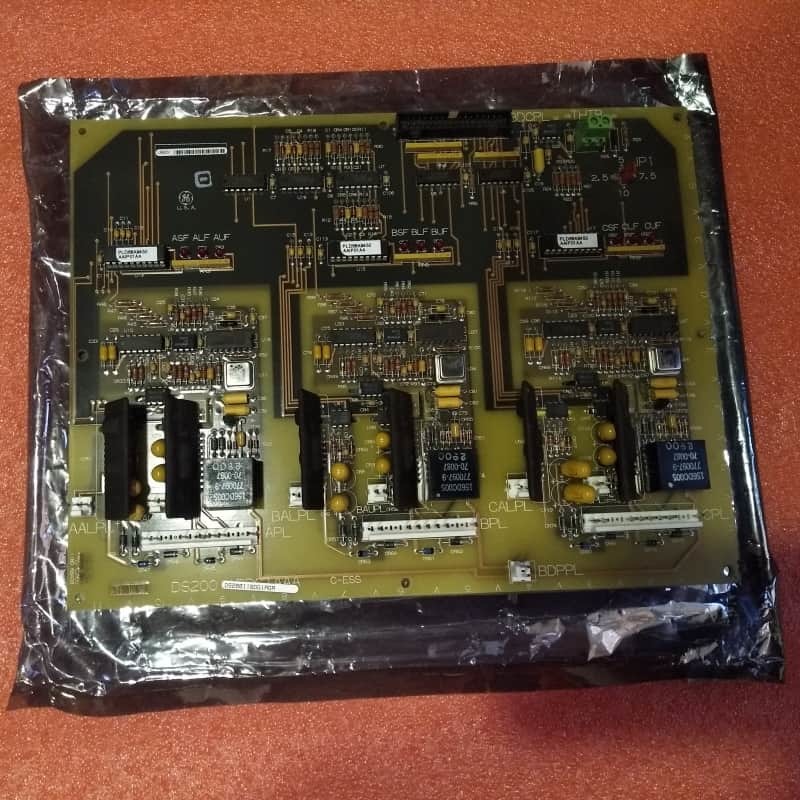

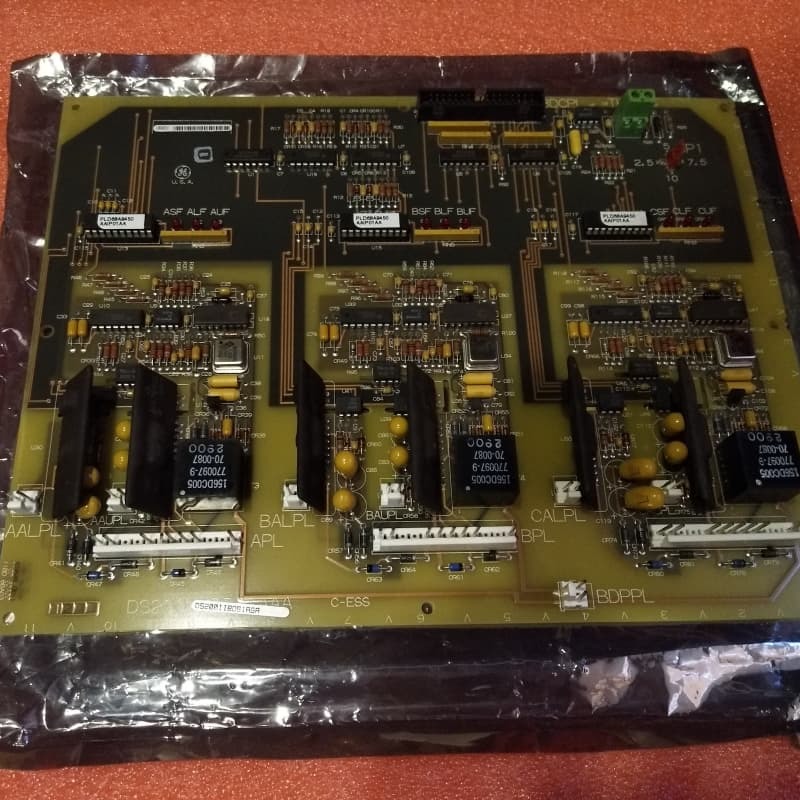

GE DS200IIBDG1AGA PCB IGBT Gate Driver Board
Product Details:
The GE DS200IIBDG1AGA is an IGBT Gate Driver Board designed for GE’s Mark V Series— a longstanding line of turbine control systems and components that continues to be maintained by GE. It is a revised variant of its parent Mark V board, incorporating three key updates: two functional revisions and one artwork revision.

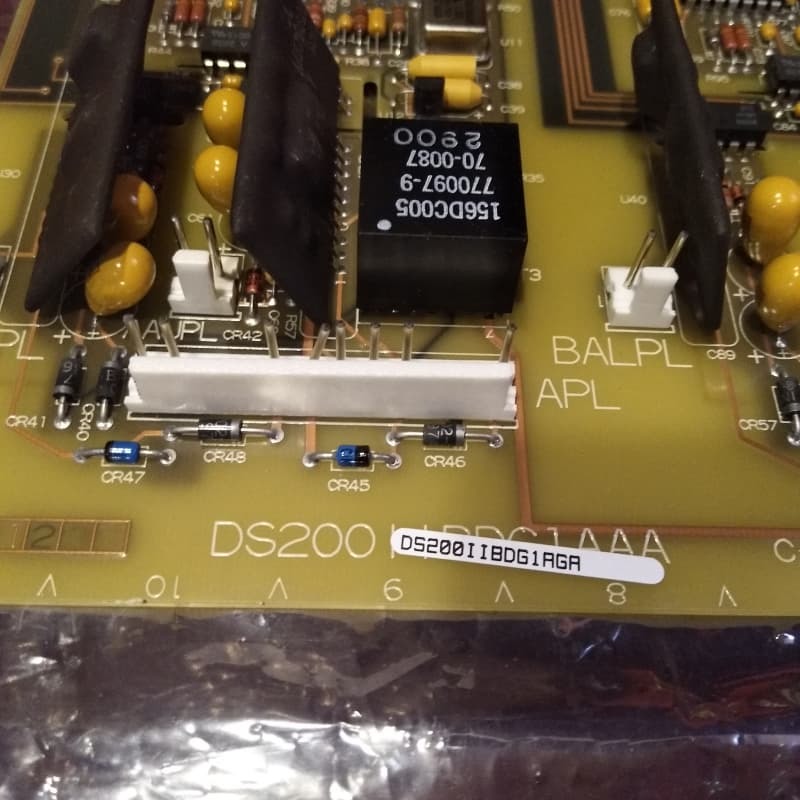

Physically, it features nine red indicator LEDs (arranged in three groups of three) visible from the circuit board cabinet—each group corresponds to an adjacent 8-pin connector (APL, BPL, CPL) and indicates the status of signals received/transmitted via these connectors. It also includes a 34-pin connector (two rows of 17 pins) that links to a single ribbon cable. Removal for replacement involves unscrewing six mounting screws, with care needed to avoid brushing against other cabinet components or board solder points; fallen screws must be retrieved to ensure drive functionality. It retains the standard assembly type common to GE Speedtronic products.
Key Features:
Mark V Series Integration: Tailored for GE’s long-running Mark V turbine control systems, ensuring compatibility with legacy and maintained turbine setups.
Revised Functionality: Three revisions enhance performance or design for reliable IGBT gate driving in turbine control circuits.
Clear Status Monitoring: Nine red LEDs (grouped by APL/BPL/CPL connectors) provide visual feedback on signal status, simplifying real-time diagnostics and troubleshooting.
Structured Connectivity: 8-pin connectors for signal transfer and a 34-pin connector for ribbon cable linking, with cabling restricted to drive interiors to prevent interference.
