GE 531X111PSHARG3 Motor Control Board 100mm x 200mm x 330mm
| Lieu d'origine | USA |
|---|---|
| Nom de marque | GE |
| Certification | COO |
| Numéro de modèle | 531x111psharg3 |
| Quantité de commande min | 1 |
| Prix | $1500 |
| Délai de livraison | 5-7 jours |
| Conditions de paiement | T / t |
| Capacité d'approvisionnement | 999 |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Nom | GE 531X111PSHARG3 MOTEUR CONTROL DE COMMANDE ET ALIMENTATION DU MOTEUR | ID de produit | 531x111psharg3 |
|---|---|---|---|
| Série | 531x | Largeur nette du produit | 100 mm |
| Hauteur nette du produit | 200 mm | Profondeur / longueur nette du produit | 330 mm |
| Garantie | 1 an | Poids net du produit | 2kg |
| Mettre en évidence | GE turbine motor control board,531X111PSHARG3 control board with warranty,100mm x 200mm x 330mm motor board |
||
Description de produit

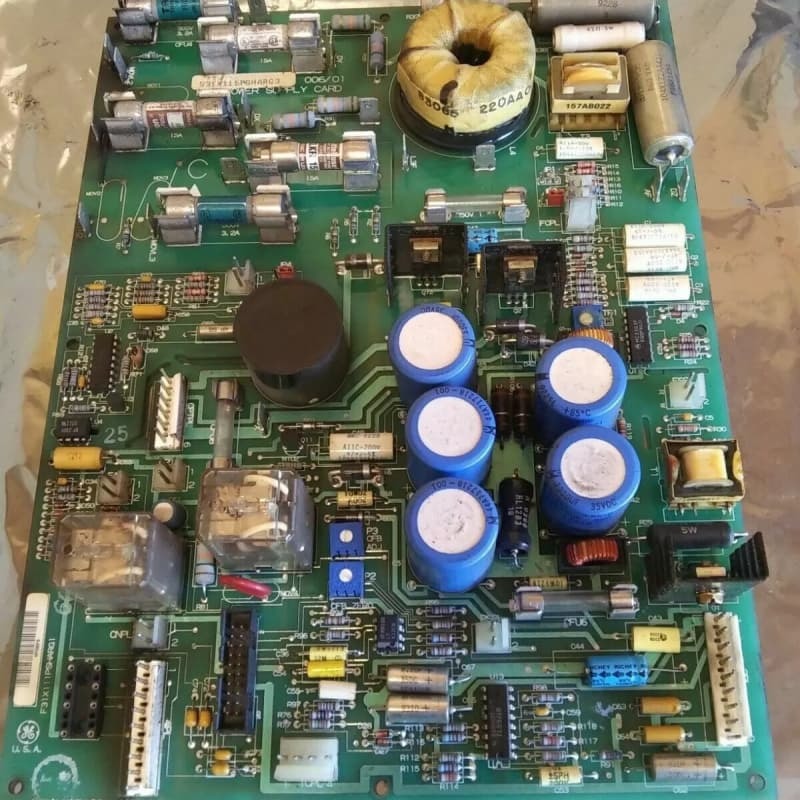

GE 531X111PSHARG3 Motor Field Control & Power Supply Board
Product Overview
The GE 531X111PSHARG3 is a Motor Field Control and Power Supply Board designed for GE’s EX2000 excitation system and part of the 531X replacement board series. As a G3 revision, it differs from prior versions by having external MOVs for AC lines and is engineered to power industrial drives and motor field electronics. Measuring 4 cm × 24 cm × 29.2 cm and weighing 0.58 kg, it generates three regulated DC power supplies critical for drive operation and integrates a pulse transformer to supply motor field circuitry.
It supports external exciters and includes three onboard relays for device control, plus three potentiometers for calibrating current feedbacks/circuits and five programmable jumpers for adjusting feedback/current signals. Installation requires trained personnel to follow GE’s guidelines to avoid damage; GE originally provided technical support, and it is compatible with GE-developed drives and exciters.
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE 531X111PSHARG3 Motor Field Control & Power Supply Board |
| Product ID | 531X111PSHARG3 |
| Series | 531X |
| Warranty | 1 Year |
| Dimensions (W × H × D) | 100mm × 200mm × 330mm |
| Weight | 2kg |
Key Features
Dual Functionality: Serves as both a power supply (5/15/24 VDC outputs) and motor field controller, integrating a pulse transformer to power motor field circuitry—eliminating the need for separate components.
G3 Revision Trait: AC line MOVs are external, a G3-specific design, optimizing onboard space and potentially simplifying maintenance of surge protection components.
Configurable Controls: Three potentiometers enable precise calibration of current feedbacks/circuits, while five programmable jumpers adjust feedback/current signals, adapting to diverse drive requirements.
Reliable Control Relays: Onboard K1 (RUN), K2 (MAX), and K3 (FAULT) relays provide clear, dedicated control for drive operational states, enhancing system safety and monitoring.

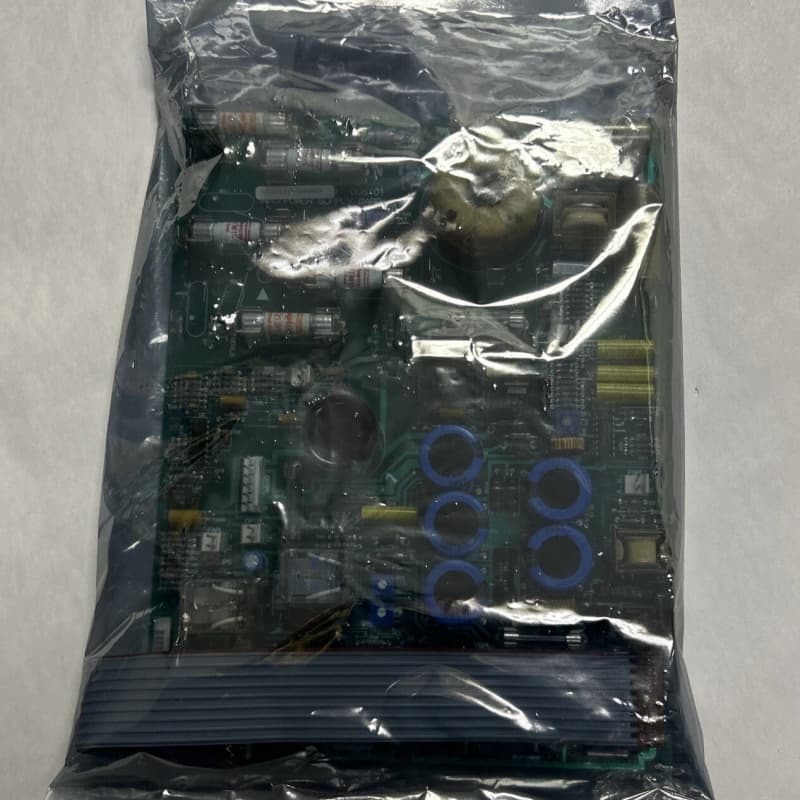

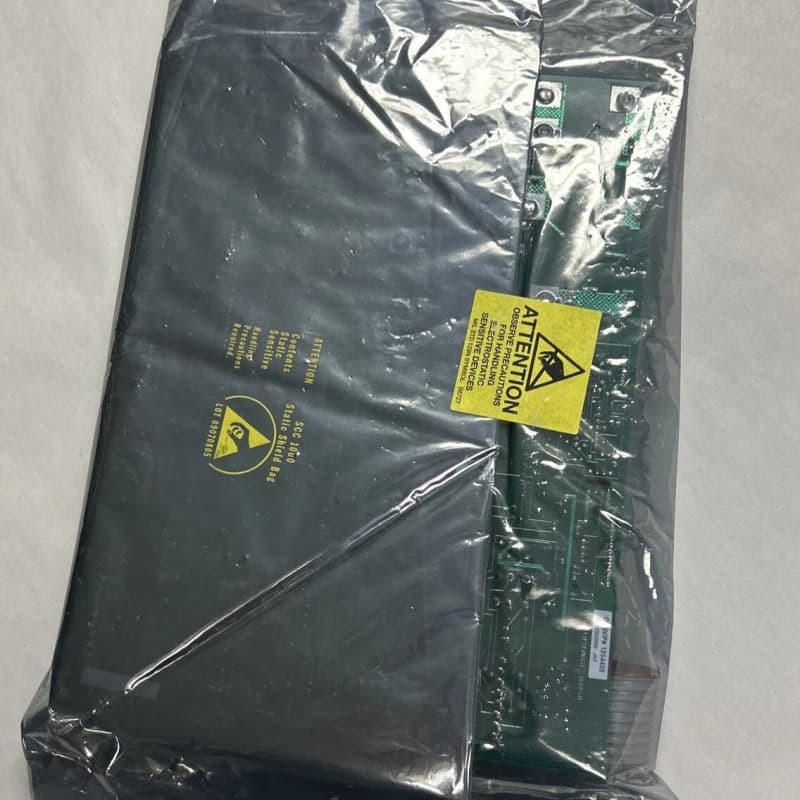

Product Images
