GE IS220PAICH1B Analog I/O Module for Mark VIe Turbine Control

Place of Origin USA
Nom de marque GE
Certification COO
Model Number IS220PAOCH1B
Minimum Order Quantity 1
Prix $7000
Delivery Time 5-7days
Payment Terms T/T
Supply Ability 999

Contactez-moi pour des aperçus gratuits et des bons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Name GE IS220PAICH1B Analog Input/Output Module Product ID IS220PAOCH1B
Series Mark VIe Product Net Weight 2kg
Warranty 1 Year Product Net Width 100mm
Product Net Height 200mm Product Net Depth/Length 330mm
Mettre en évidence

GE Mark VIe turbine analog I/O module

,

GE IS220PAICH1B control module

,

turbine control analog input module

Laisser un message
Description de produit
GE IS220PAICH1B Analog Input/Output Module
Product Specifications
Attribute Value
Name GE IS220PAICH1B Analog Input/Output Module
Product ID IS220PAOCH1B
Series Mark VIe
Product Net Weight 2kg
Warranty 1 Year
Dimensions (W x H x D) 100mm × 200mm × 330mm
Product Overview
The GE IS220PAICH1B is an Analog I/O Pack from the Mark VIe series, serving as a critical electrical interface between 1-2 I/O Ethernet networks and analog input terminal boards. It integrates a shared processor board and a dedicated analog input acquisition board, handling 10 analog inputs and 2 analog outputs.
Key Features
  • Flexible I/O Configuration: 10 analog inputs (Channels 1-8 configurable as 5V/10V or 0-20mA; Channels 9-10 as 1mA or 0-20mA) and 2 analog outputs with 18V compliance in simplex/TMR modes
  • Processor & Auto-Reconfiguration: Features soft-start circuit for sequential power-up and self-test routines with plug-and-play replacement capability
  • Advanced Analog Hardware: 16-bit ADC with multiplexing and gain options for inputs; 14-bit DACs, current regulators, and mechanical relays for outputs
  • High Performance: 5ms normal scan time, 16-bit conversion resolution, and 5.3W typical power consumption
  • TMR Compatibility: Output relays isolate failed channels for uninterrupted operation in TMR systems
  • Connectivity: Power via 3-pin connector, data transmission through dual RJ45 Ethernet ports and DC-37 pin connector
  • Diagnostic Capabilities: LED indicators provide visual feedback for operational status

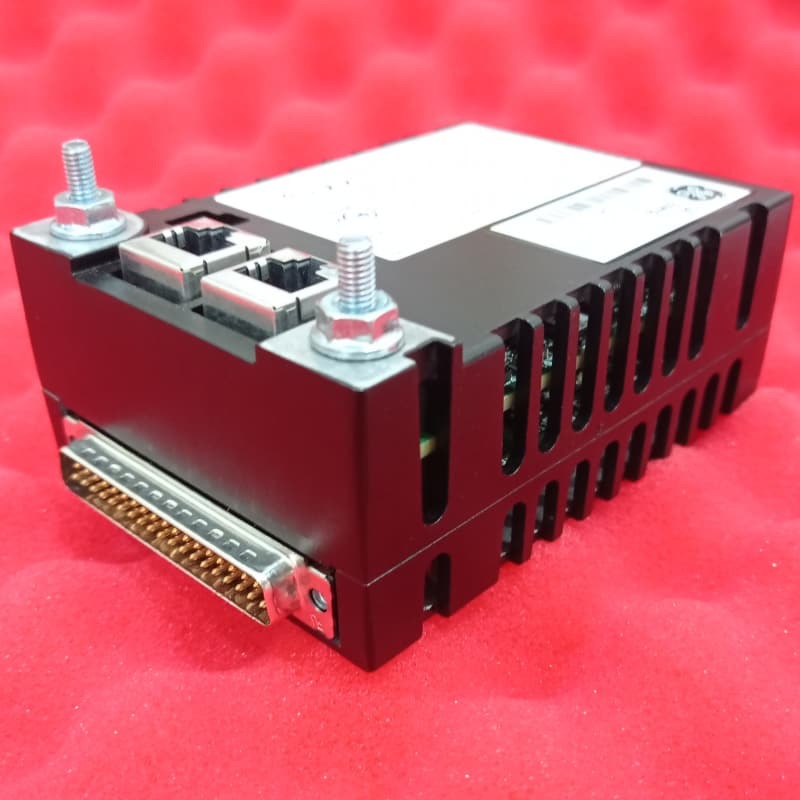

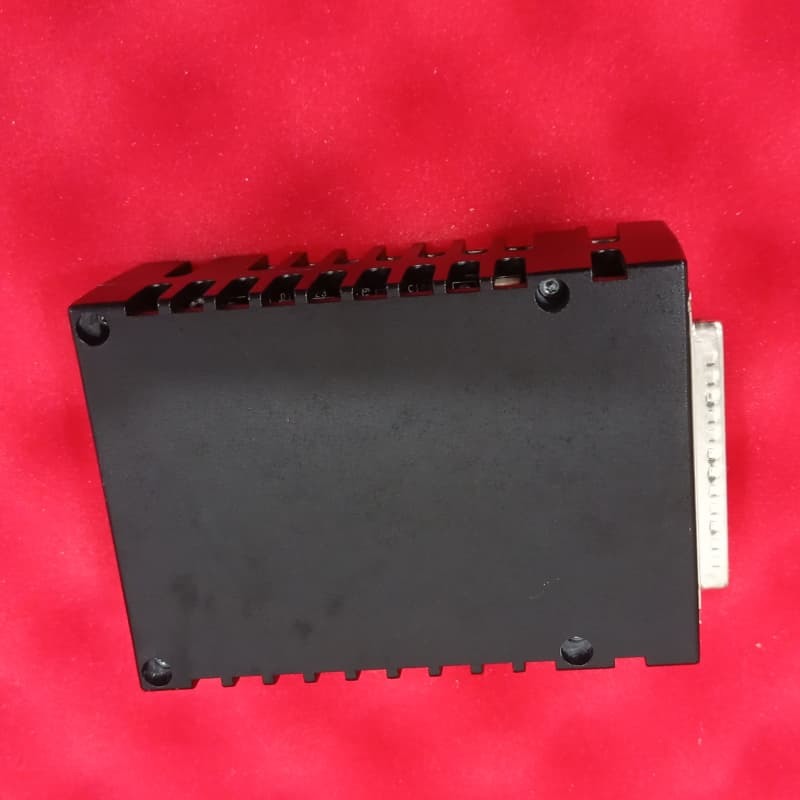

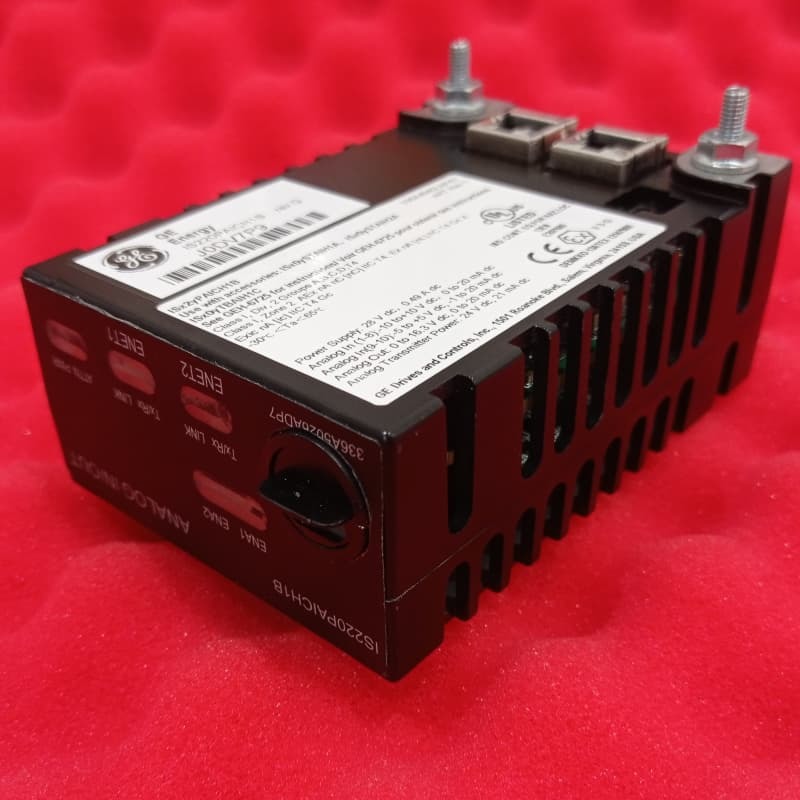

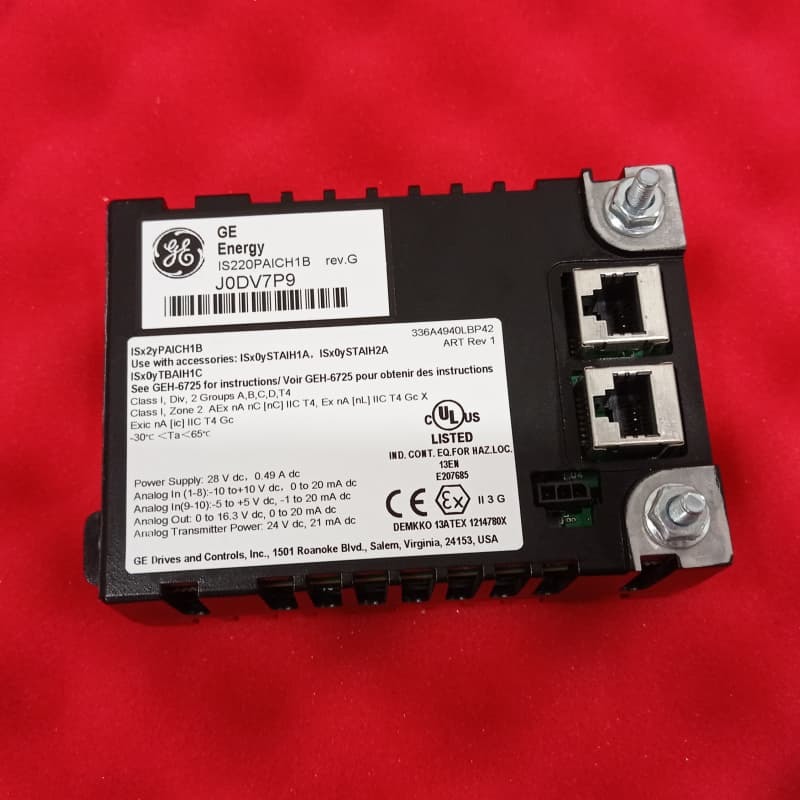

GE IS220PAICH1B Analog I/O Module for Mark VIe Turbine Control 0 GE IS220PAICH1B Analog I/O Module for Mark VIe Turbine Control 1
