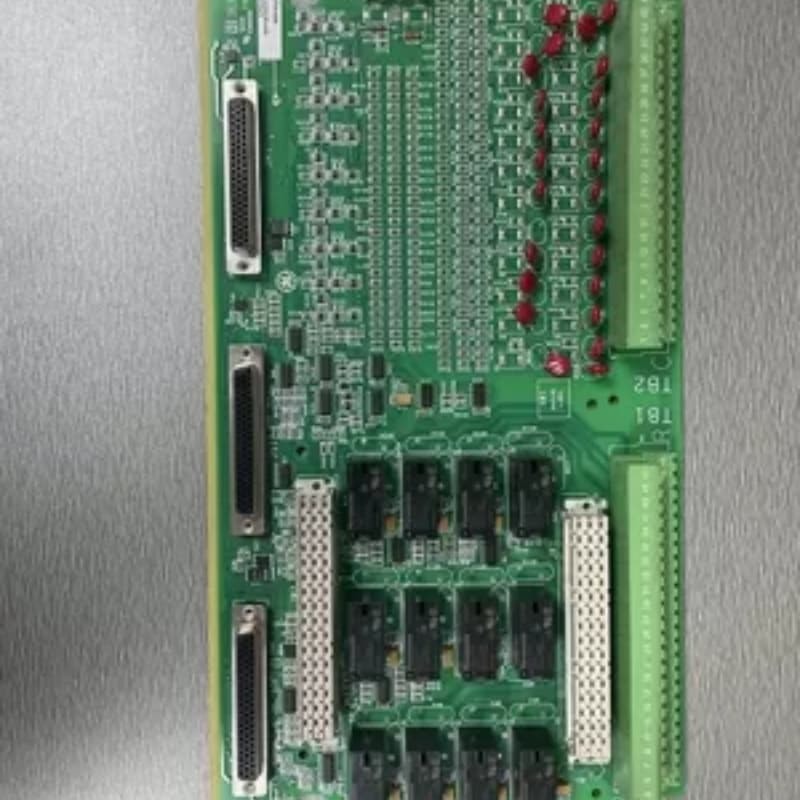

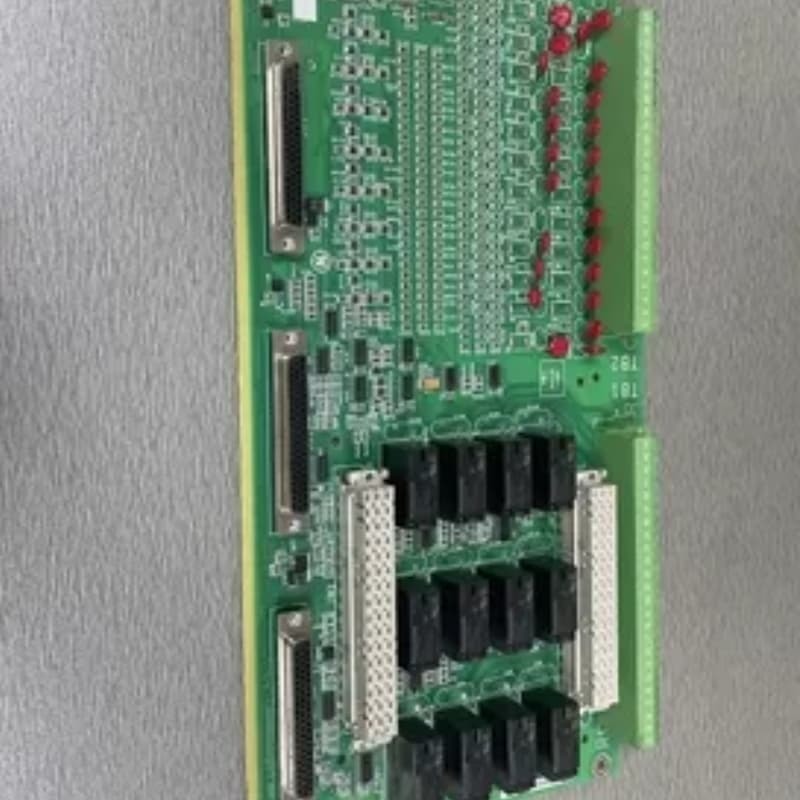

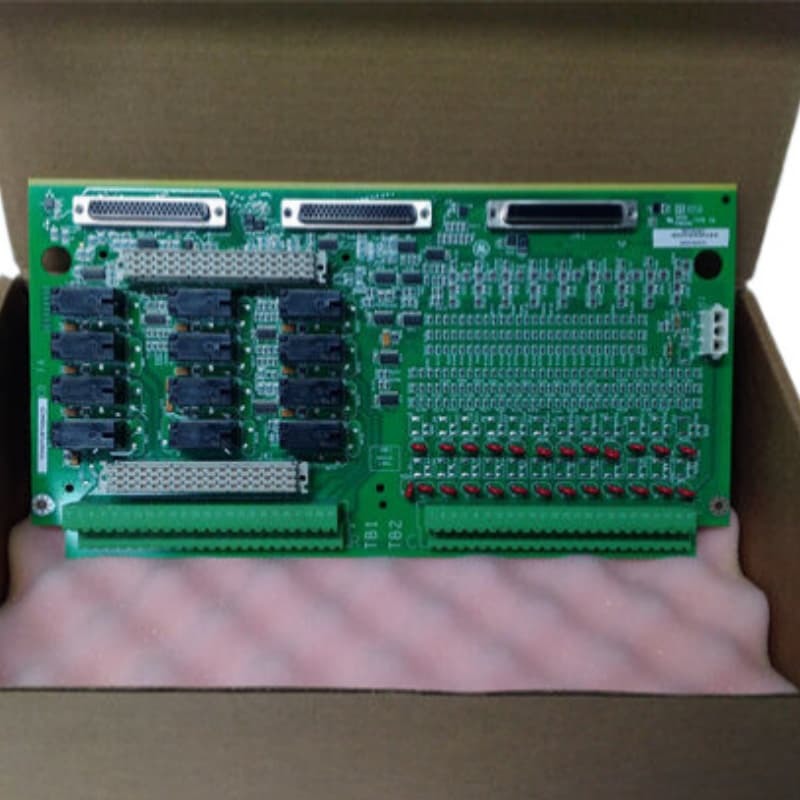

GE IS200TDBTH6A Discrete I/O Terminal Board for Turbine Control
| Place of Origin | US |
|---|---|
| Nom de marque | GE |
| Certification | COO |
| Model Number | IS200TDBTH6A |
| Minimum Order Quantity | 1pc |
| Prix | $7000 |
| Packaging Details | New and original factory, individual box packing |
| Delivery Time | 5-7days |
| Payment Terms | T/T |
| Supply Ability | 999pcs |
Contactez-moi pour des aperçus gratuits et des bons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.
xDétails sur le produit
| Name | GE IS200TDBTH6A Discrete Input/Output Terminal Board | Product ID | IS200TDBTH6A |
|---|---|---|---|
| Series | Turbine Specific Primary Trip Board | Function | Discrete Input/Output Terminal Board |
| Product Net Depth/Length | 330mm | Product Net Height | 200mm |
| Product Net Width | 100mm | Product Net Weight | 2kg |
| Warranty | 1year | ||
| Mettre en évidence | GE turbine control I/O terminal board,discrete I/O board IS200TDBTH6A,turbine control terminal board replacement |
||
Description de produit
GE IS200TDBTH6A Discrete Input/Output Terminal Board
Product Specifications
| Attribute | Value |
|---|---|
| Name | GE IS200TDBTH6A Discrete Input/Output Terminal Board |
| Product ID | IS200TDBTH6A |
| Series | Turbine Specific Primary Trip Board |
| Function | Discrete Input/Output Terminal Board |
| Dimensions (L x W x H) | 330mm x 100mm x 200mm |
| Weight | 2kg |
| Warranty | 1 year |
Product Overview
The GE IS200TDBTH6A is a discrete input/output terminal board in the Mark VI series, designed for distributed control systems with support for triple modular redundant architecture. This versatile component can be installed on flat surfaces or DIN rails, offering robust industrial performance.
Key Features
- Input/Output Capabilities: 24 group-isolated contact inputs compatible with 24V, 48V, or 125V DC wetting voltages, plus 12 Form-C relay outputs with optional card expansion.
- Advanced Protection: Input circuit features noise suppression for surge protection and high-frequency interference resistance.
- TMR Compatibility: Supports triple modular redundant architecture for enhanced system reliability.
- Flexible Installation: Compatible with DIN rail or cabinet mounting, using 18 AWG wiring.
- Simplified Configuration: No hardware jumper requirements; optional card jumpers control relay switch states.
Technical Details
This terminal board interfaces with PDIO I/O modules in the Mark VI system through D-type connectors, supporting communication with controllers via Ethernet. The design features separate terminal sets for input and relay output connections (48 terminals total), with independent grounding for shielding layers.
