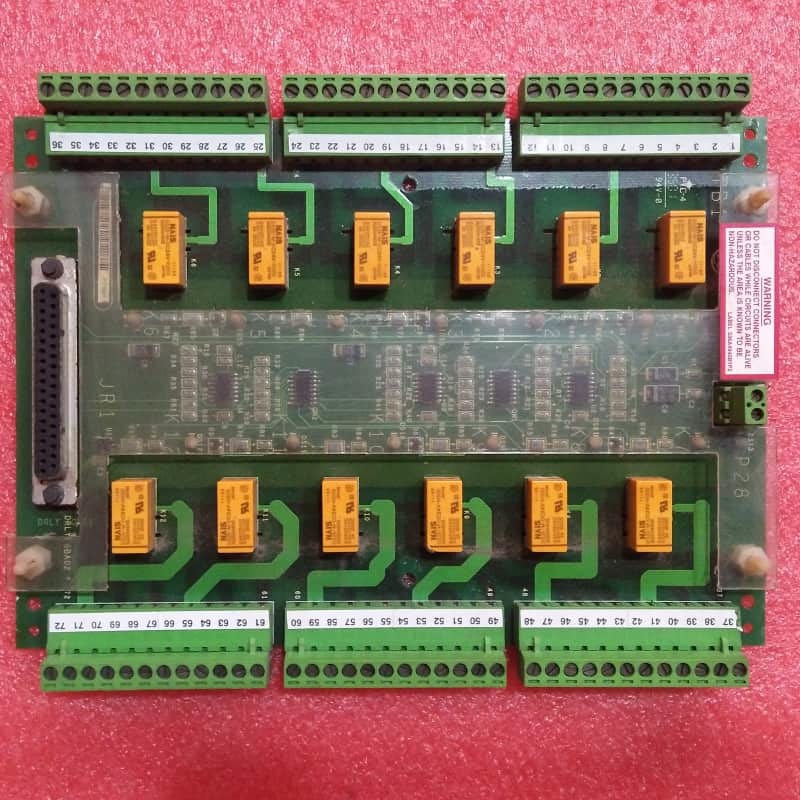

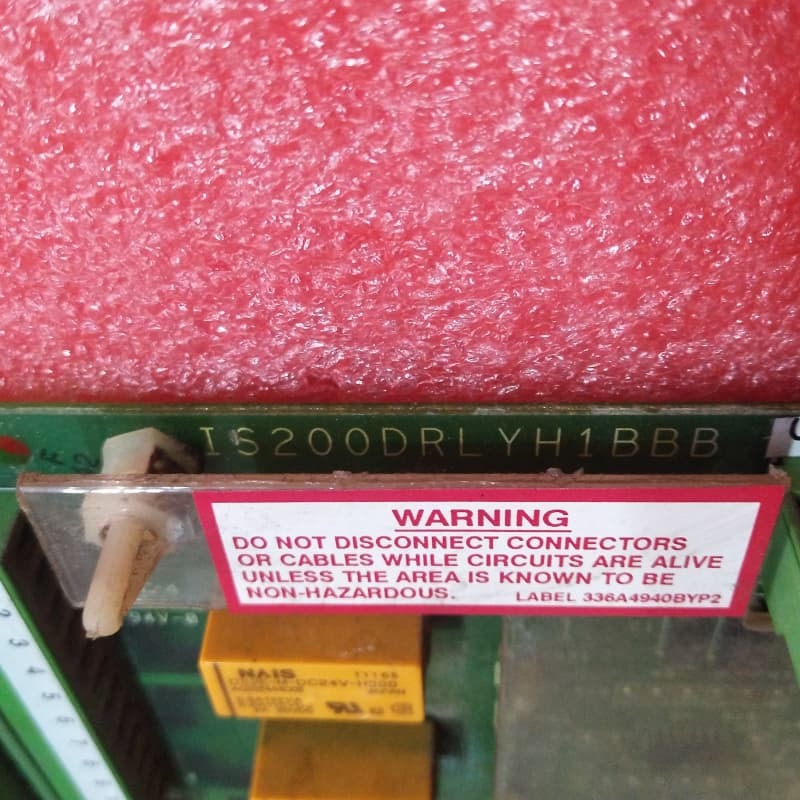

GE IS200DRLYH1B Mark VI RELAY OUTPUT TERMINAL BOARD

Product Description:

The GE IS200DRLYH1B is a relay output terminal board part of the Mark VI series. It facilitates relay-based output connections in industrial control systems, likely interfacing with controllers to transmit switched signals to external devices.

As a terminal board, it probably houses relay terminals for secure wiring, enabling the control of various peripherals. Designed for reliability, it integrates into GE's control architecture, supporting the system's output functionality.

Its role critical in translating control signals into actionable outputs via relays, ensuring efficient operation in industrial settings where Mark VI systems are deployed.

Features:

The IS200DRLYH1B, a GE Mark VI Series Relay Output Terminal Board for Speedtronic Gas Turbine Systems, is a simplex, wall-mounted (non-DIN-rail) board with 12 form-C dry contact relays. It connects to VCCC/VCRC/VTUR boards via a single cable, using the same 37-pin connector as larger TRLY boards. Two units can pair for 24 outputs.

As the H1B version, it suits UL Class I, Division 2 hazardous locations (lower power than H1A). It lacks solenoid power, onboard suppression, and relay monitoring. Relays get 28V DC from I/O boards (green LED indicator), with yellow LEDs showing coil voltage. They default to de-energized when disconnected.

Technical Parameters:

Applications:

The GE Turbine Control Device is suitable for a variety of applications and scenarios. It is commonly used in power plants, oil refineries, and chemical processing plants. The device plays a crucial role in ensuring the smooth operation and performance of turbines, making it an essential component for any industrial establishment.
